GHCVJB0020 CV Joint Boot for Toyota Camry SXV10/SXV20 | OEM 43448‑20020 / YB02‑1011 | Trusted Production Base

Product Overview The GHCVJB0020 CV Joint Boot is a precision‑engineered protective boot designed to meet OEM 43448‑20020 / YB02‑1011 specifications for Toyota Camry drivetrain systems. This inner drive shaft boot is crafted to deliver dependable sealing performance that retains grease within the constant velocity (CV)…
High Quality
CE Certified
Fast Delivery
OEM/ODM
Global Export
Professional Service
Inquire Now View Applications
CV Joint Boots

Product Overview

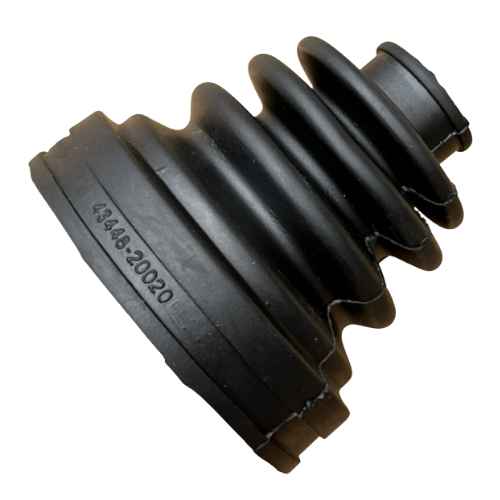

The GHCVJB0020 CV Joint Boot is a precision‑engineered protective boot designed to meet OEM 43448‑20020 / YB02‑1011 specifications for Toyota Camry drivetrain systems. This inner drive shaft boot is crafted to deliver dependable sealing performance that retains grease within the constant velocity (CV) joint while preventing ingress of dirt, water, mud, and other harmful contaminants. As a direct fit replacement for Toyota Camry SXV10 and SXV20 models, GHCVJB0020 offers OEM‑level quality with cost‑effective aftermarket advantages.

Built for B2B applications, this CV Joint Boot model supports aftermarket distributors, repair facilities, automotive parts wholesalers, and professional rebuilders seeking high‑performance components with stable supply and trusted manufacturing standards.

Core Advantages

  • OEM‑Exact Compatibility — Molds and dimensions precisely match OEM 43448‑20020 / YB02‑1011 , ensuring seamless installation and reliable fitment for Toyota Camry SXV10 and SXV20 vehicles.

  • Superior Sealing Protection — Reinforced bellows structure with precision grooves and self‑securing clamp design prevents grease leakage and blocks external contaminants from reaching the CV joint.

  • High‑Flex Durability — Special elastomer compounds offer excellent flexibility under articulation, resisting cracking and wear during full steering and suspension motion.

  • UV & Environmental Resistance — UV‑resistant material and tough rubber composition maintain performance and structural integrity under harsh environmental conditions.

  • Consistent Batch Quality — Manufactured under rigorous quality protocols to ensure uniform standards and dependable performance across supply runs.

  • Bulk Supply & Aftermarket Ready — Designed for wholesalers, distributors, and professional rebuild programs with strong production capacity and inventory support.

Application System

The GHCVJB0020 CV Joint Boot is part of the drivetrain protection system , covering the inner constant velocity joint on the drive axle to maintain lubrication and prevent wear. It protects the CV joint assembly from contamination and reduces premature joint failure. This model is specifically intended for Toyota Camry SXV10 and SXV20 applications that require OEM 43448‑20020 / YB02‑1011 replacement boots.

Technical Specifications

Item Specification
Product Code GHCVJB0020
Product Category CV Joint Boot (Inner Drive Shaft Boot)
OEM Reference 43448‑20020 / YB02‑1011
Inner Diameter 22.5 mm (approx.)
Outer Diameter 85 mm (approx.)
Length 95 mm (approx.)
Operating Temperature –40°C to +120°C
Hardness ~65 ±5 Shore A
Structure Reinforced multi‑pleated bellows
Color Black (custom options available)

Dimensions and performance characteristics are engineered to meet OEM specifications for Toyota Camry SXV10/SXV20 drivetrain applications.

Material Description

The GHCVJB0020 is constructed from premium automotive rubber compounds selected for elasticity, abrasion resistance, and environmental stability. The material formulation provides exceptional resistance to oil, grease, and road chemicals while maintaining flexibility under repeated flexing and variable temperatures. The reinforced bellows design enhances articulation capability while preserving structural integrity throughout service life.

OEM & ODM Services

Guanghua offers comprehensive OEM & ODM support to meet the needs of global B2B partners, including:

  • Custom mold tooling based on drawings or physical samples

  • Private label production and packaging customization

  • Tailored material compound options for specific performance needs

  • Stable high‑volume production capacity with reliable lead times

  • Pre‑order sample support for product validation

Why Choose Guanghua

With decades of experience in manufacturing automotive rubber components, Guanghua delivers reliable, OEM‑matched CV Joint Boots that meet or exceed industry durability standards. The GHCVJB0020 CV Joint Boot OEM 43448‑20020 / YB02‑1011 is engineered for precision, performance, and consistency — making it an ideal choice for parts wholesalers and aftermarket professionals requiring dependable supply and quality service.

GHCVJB0020 CV Joint Boot OEM 43448‑20020 / YB02‑1011 – Trusted Production Base & Supplier for B2B Markets

Applications

Passenger Vehicles

Ideal for Toyota, Honda, Nissan and other passenger cars requiring OEM 43448 CV boot replacement. Protects front-wheel drive and all-wheel drive CV joints from contaminants.

Light Commercial Vehicles

Perfect for vans, pickups and delivery vehicles with constant velocity joints. Ensures reliable drivetrain protection under frequent stop-and-go operation.

SUV & 4WD Vehicles

Heavy-duty protection for sport utility vehicles and four-wheel drive systems. Withstands extreme conditions including off-road, mud, and water exposure.

Aftermarket Repair & Service

OEM-quality replacement for automotive repair shops, service centers and aftermarket distributors. Ensures proper fitment and long service life.

Fleet Maintenance Programs

Bulk supply for taxi fleets, rental car companies and transportation services. Cost-effective preventive maintenance solution for high-mileage vehicles.

OEM Assembly & Production

Suitable for automotive manufacturers and Tier 1 suppliers requiring consistent quality CV boots for vehicle assembly lines and drivetrain systems.
